Splashdown is a mission’s last gate. Getting it right protects the vehicle, the payloads, and one day, people.

We closed a focused campaign at CNR - Istituto di Ingegneria del Mare (INM) in the “Umberto Pugliese” towing tank, a 470 m by 13.5 m by 6.5 m facility. From 13 to 28 January 2026 we validated the Nyx splashdown model that underpins certification.

A 1:4-scale mock-up, 135 kg, fiberglass structure, built with Poli-Model Srl, was released at precisely varied heights and speeds in calm water for maximum repeatability. We instrumented the exterior with pressure sensors and logged tri-axis acceleration and attitude via accelerometers and a gyroscope. All channels were time-synced on an onboard computer to enable frame-by-frame correlation.

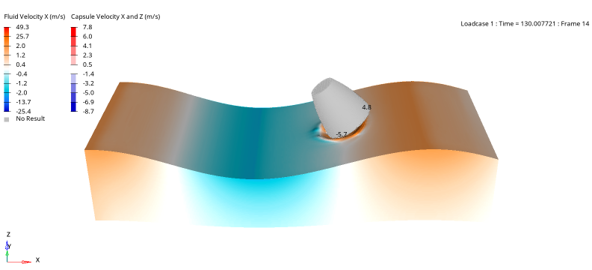

Model-to-test correlation is underway to refine hydrodynamic coefficients, update front-shield and primary-structure margins, and tighten recovery acceptance criteria. CNR-INM managed the campaign end-to-end with TEC engineers embedded for planning, instrumentation, and daily turnarounds.
‍

‍

Rome provided scale, control, and metrology at the right moment to close the loop with parachute deployment and terminal descent.
